Model

RBE94H

Wi-Fi Standard

Wi-Fi7

Chip Specification

Main Chip

Qualcomm IPQ5322

RF Chip

2.4GHz, Integrated in IPQ5322    5GHz, QCN6274     6GHz, QCN6274

Flash Capacity

256MB Spi Nand Flash

Memory Capacity

512MB DDR4

Performance Specifications

Max Wireless Transmission Rate

BE9300(9334Mbps)

 Max Wireless Transmit Power

2.4G: HE20    MCS0:24dBm, EHT40    MCS13:20dBm
5G: HE20    MCSO:22dBm, EHT160    MCS13:18dBm

Max Connected Devices

256

Power Consumption

Idle Power: 10.6W, Max Power: ~19W

RF Specifications

 RF

Triple RF, Total 6 Spatial Streams:
2.4GHz, 2 streams, 2*2, MU-MIMO
5GHz, 2 streams, 2*2, MU-MIMO
6GHz, 2 streams, 2*2, MU-MIMO

Transmission Rate

2.4GHz, 688Mbps 5GHz, 2882Mbps  6GHz, 5764Mbps

Antenna Type

Built-in Omnidirectional Antenna, Antenna Gain 3dbi

Physical Specifications

 Physical Interface Specifications

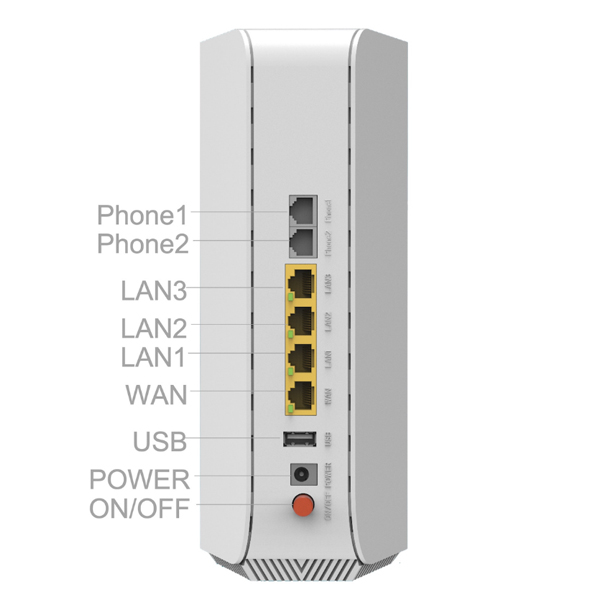

1x 10M/100M/1000M/2500Mbps WAN Port 3x 10M/100M/1000M/2500Mbps LAN Ports 1x Reset Button  1x WPS/MESH Button

LEDs

1 LED, Red/Green Dual-color LED

Power

12V2A Power Adapter

Installation

Desktop

Dimensions

248mm*168mm*38mm

Device Settings

Setup Wizard

Supported, completes basic router configuration

 Device Status

Displays various real-time device information

Network status and device operation status

Network Monitoring

SSID

Online Devices

Operation Mode

Operation Mode

Supports Bridge, Router, Repeater modes

Internet Settings

Internet Settings

Supports setting DHCP, PPPOE, Static IP for internet access

Wi-Fi Basic Functions

MESH Networking

Supports Mesh switch, manual Mesh role switching, quick networking of multiple devices, extended coverage, can view network topology

Guest SSID

Supported

Tri-Band unity

Supported

Wi-Fi Switch

Supported

Signal Strength

Supports selecting signal strength: Green, Standard, Wall-Penetrating

Advanced Functions

System Information

Supports displaying WAN, LAN status and wifi basic information

DHCP Static IP

Supports MAC and IP address binding, assigns fixed IP addresses to terminals

Wi-Fi Advanced Configuration

Supports other wireless parameter configuration, such as Client Isolation, Beacon Interval, OFDMA switch, MU-MIMO switch, TWT  etc.

WPS Function

Supports WPS button, and page to view WPS switch, and WPS status

DDNS

Supports DDNS, supports common servers

UPnP

Supports UPnP function switch

Port Forwarding

Supports port forwarding rule configuration

DMZ

Supports DMZ configuration

IPv6 Settings

Supports IPv6 address settings

Online Clients

Supports viewing connected terminal information (including IP, MAC address, terminal speed limit, etc.)

Smart QoS

Supports QoS selection configuration: Auto, Game, Web, Video mode

Anti-Theft Net

Supports configuring blacklist/whitelist (prevent others from stealing WiFi network, more secure network)

VPN

VPN: Supports L2TP, PPTP, OpenVPN and WireGuard

LED Control

Supports switching LED indicator light

IPTV

Supported

Scheduled Reboot

Supports time configuration

Parental Controls

Supports configuring internet access time

System Configuration

System Log

Supports local log recording, records actions and errors of the device

Admin Password

Supports router login password setting to enhance router security level

Reset

Supports device software reset function, can restore device to factory settings via page

Product Features

1、External PA, built-in antenna, super coverage
2、New generation WIFI7 standard, 4-core processor, supports 6G to break through bandwidth bottlenecks
3、Supports MLO, supports Tri-Band unity, better user experience
4、Supports EZMESH, supports up to 8 devices for networking, easily achieving whole-house WIFI coverage
