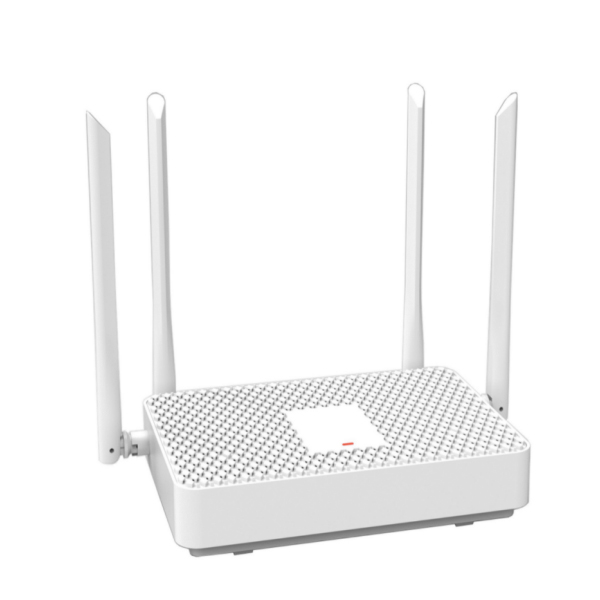

Model

RAX30L

Wi-Fi Standard

Wi-Fi 6

Chip Specifications

Main Chip

Qualcomm IPQ5018

RF Chip

2.4GHz: Integrated in IPQ5018
5GHz: QCN6102

Flash Capacity

128MB SPI NAND Flash

Memory Capacity

256/512MB DDR3L

Performance Specifications

Maximum Wireless Transmission Rate

AX3000 (2975Mbps)

Maximum Wireless Transmit Power

2.4G: HE20 MCS0: 20dBm, HE40 MCS11: 15dBm
5G: HE20 MCS0: 23dBm, HE160 MCS11: 18dBm

Maximum Connected Devices

128

Power Consumption

Idle: 4.8W, Maximum: approx. 11.6W

RF Specifications

Radio

Dual-band radio, Total 4 spatial streams:
2.4GHz: 2 streams, 2x2, MU-MIMO
5GHz: 2 streams, 2x2, MU-MIMO

Data Rates

2.4GHz: 575Mbps
5GHz: 2400Mbps

Antenna Type

External omnidirectional antennas, Antenna gain: 5dBi

Physical Specifications

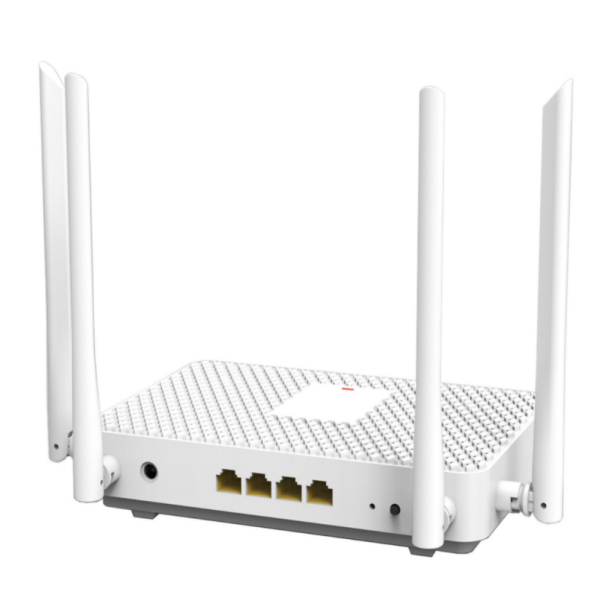

Physical Interfaces

1 x 10/100/1000Mbps WAN port
3 x 10/100/1000Mbps LAN ports
1 x Reset button
1 x WPS/MESH button

LEDs

1 indicator light, Red/Green dual-color

Power Supply

12V 1.5A power adapter

Installation

Desktop

Dimensions (W x D x H)

248mm x 168mm x 38mm

Device Setup

Setup Wizard

Supported, completes basic router configuration

Device Status

Displays various real-time device information

Network status and device operation status

Network Monitoring

SSID

Online Devices

Operation Mode

Operation Mode

Supports Bridge, Router, and Repeater modes

Internet Settings

Internet Settings

Supports DHCP, PPPoE, Static IP connection types

Basic Wi-Fi Features

MESH Networking

Supports MESH on/off, manual MESH role switching, quick multi-device networking for extended coverage, view network topology

Guest SSID

Supported

Dual-Band SSID Unification (Smart Connect)

Supported

Wi-Fi On/Off

Supported

Signal Strength Adjustment

Supports selecting signal strength: Green (Eco), Standard, Wall-Penetrating (High)

Advanced Features

System Information

Displays WAN, LAN status, and basic Wi-Fi information

DHCP Static IP Reservation

Supports MAC and IP address binding to assign fixed IP addresses to clients

Wi-Fi Advanced Configuration

Supports configuration of other wireless parameters, such as Client Isolation, Beacon Interval, OFDMA switch, MU-MIMO switch, TWT, etc.

WPS Function

Supports WPS button, page view for WPS on/off, and WPS status

DDNS

Supports DDNS, compatible with common service providers

UPnP

Supports UPnP on/off switch

Port Forwarding

Supports port forwarding rule configuration

DMZ

Supports DMZ configuration

IPv6 Settings

Supports IPv6 address configuration

Online Clients

View connected client information (including IP, MAC address, client speed limiting, etc.)

Smart QoS

Supports QoS mode selection: Auto, Game, Web Browsing, Video

Access Control (Black/White List)

Supports configuring black/white lists (prevents unauthorized Wi-Fi access for enhanced network security)

VPN

Supports L2TP, PPTP, OpenVPN, and WireGuard

LED Control

Supports turning LED indicator on/off

IPTV

Supported

Scheduled Reboot

Supports time configuration

Parental Controls

Supports configuring internet access schedules

System Configuration

System Log

Supports local log recording of device actions and errors

Admin Password

Supports router login password setting to enhance security

Reset

Supports software reset function to restore factory settings via the web interface

Product Features

1. External PAs, external antennas, superior coverage
2. Dual-band concurrent connections up to 128 devices
3. Qualcomm Wi-Fi SON Mesh technology for easy multi-router Mesh networking
