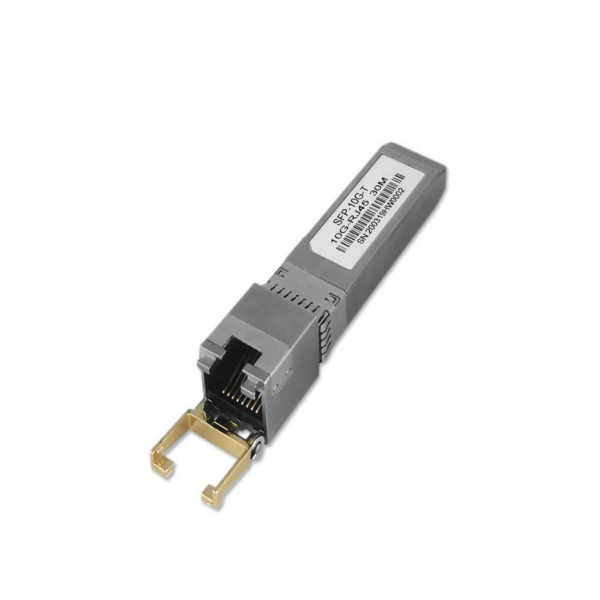

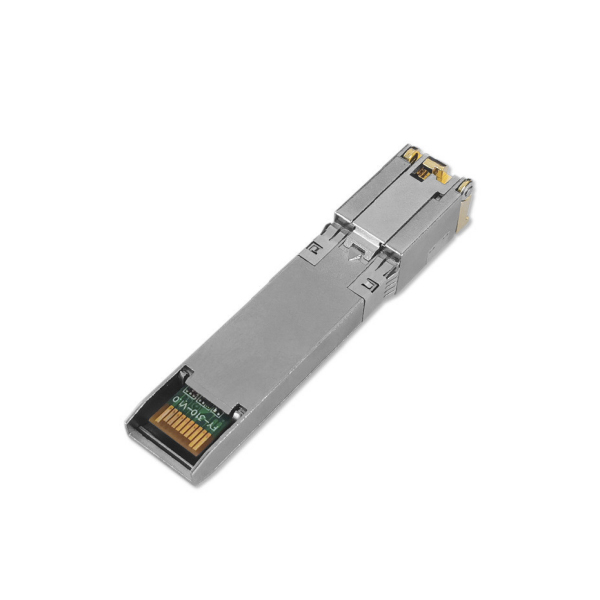

Product Name: Rtjtek--SFP-T Electrical interface module
Product Model:
Click Times: Times
Previous
【Next】
|
Equipped with a 10 Gigabit electrical port.
Supports 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T line ports.
Supports a host port of 10Gbase-R.
Utilizes a hot-pluggable SFP package.
Features a compact RJ-45 connector.
Complies with the RoHS lead-free standard.
Operates on a single +3.3V power supply.
Supports 10 Gigabit Ethernet over Cat 6a cables.
Operating temperature range: 0°C to +70°C.
The Rtjtek SFP+-T electrical port module is a copper Small Form-Factor Pluggable (SFP) transceiver compliant with the SFP Multi-Source Agreement (MSA). This module is compatible with the 10Gbase-T, 5Gbase-T, 2.5Gbase-T, and 1000base-T standards within IEEE 802.3, and supports link status indication via the RX_LOS pin (requires a host-side pull-up).
| Parameter | Details |
| Model | Rtjtek SFP+-T |
| Brand | Rtjtek |
| Form Factor | SFP+ |
| Data Rate | 10Gbps |
| Power Consumption | ≤ 3.6W |
| Reach | 30m |
| Interface | RJ-45 |
| Cable Type | Copper Cable |
| Digital Diagnostic Monitoring (DDM/DOM) | No |
| EMC (Electromagnetic Compatibility) | Yes |
| Commercial Temperature Range | 0 ~ 70°C |
| MTBF | 5,000,000 hours |
| Protocols | IEEE 802.3an, IEEE 802.3az, SFP+ MSA, SFF-8431 |
| Warranty | 3 Years |
| Compatible Brands | Cisco, Huawei, H3C, ZTE, Ruijie, HP, Digital China, Juniper, ALCATEL, Arista Networks, BROCADE, DELL, D-LINK, Extreme, Mellanox, Nortel, Ericsson, Hirschmann, MOXA, Raisecom, Nokia, Intel |
