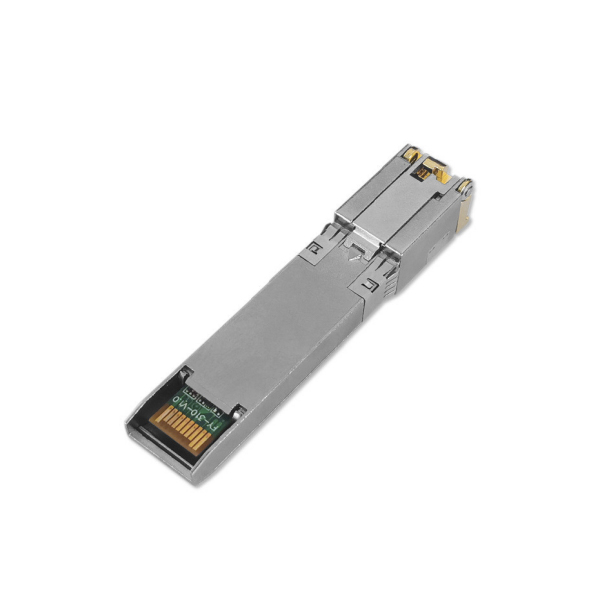

Rtjtek SFP-T Electrical Port Module

A copper Small Form-Factor Pluggable (SFP) electrical port module compatible with Gigabit Ethernet and 1000BASE-T.

Product Features

• Gigabit electrical port
• Supports bidirectional data rates up to 1.25 Gb/s
• Supports 10/100/1000 BASE-T operation for host systems with SERDES interface
• Utilizes a hot-pluggable SFP package
• Compact RJ-45 connector
• Full metal shell for reduced electromagnetic interference (EMI)
• Operates on a single +3.3V power supply
• Supports 1.25 Gigabit Ethernet over Cat 5 cables
• Operating temperature range: 0°C to +70°C

Product Overview

The Rtjtek SFP-T electrical port module is a copper Small Form-Factor Pluggable (SFP) module based on the SFP Multi-Source Agreement (MSA). It is compatible with Gigabit Ethernet and the 1000BASE-T standard within IEEE 802.3. Its Physical Layer Chip (PHY) supports access via an I2C interface, facilitating the configuration of all PHY settings and functions.

Technical Specifications

The specifications of the Rtjtek SFP-T electrical port module are as follows:

Product Dimensions
